135inch Conference Interactive Flat Panel Display

  • 1
  • 2

Brand Name : JCVISION

Model Number : JC-UHD-P1.5625

Certification : CE, Rohs, FCC

Place of Origin : SHENZHEN, CHINA

MOQ : 1unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 Unit/Units per Month

Delivery Time : 5-8 work days

Packaging Details : wooden box

Pixel pitch(mm) : 1.5625

Size(mm) : 3000(W)*1678.5(H)*27.9

Display size : 3000(W)*1687.5(H)=5.0625㎡

Resolution(P) : 1920x1080(2K)

Max Power : 3000W

Ave power : 1800W

Working temp(℃) : -10℃—40℃

Warranty : 3 years

Contact Now

Product Features


1. Specially developed for LED TV applications, with powerful interaction, integration and playback capabilities;
2. Support 1 channel 4K HDR decoder, with powerful video, pictures, documents and other materials
of Play ability;
3. Support 1 USB3.0, 4 USB2.0 expansion interface, can be directly used for multimedia material
play and function expansion;
4. Support U disk content playback;
5. Supports 3 HDMI input signals and multi-screen display;
6. Support up to 3 windows display (3 HDMI + built-in players, any four choices three);
7. Android 9.0 OS, customers can install applications as needed;
8. Support OSD, which can be controlled by remote control;
9. Support cloud management, unified management of devices remotely (customization required);
10. The boot interface can be customized to adapt to different application scenarios, including TV, conference, etc .;
11. Support stand-alone loop backup to improve display reliability;
12. Support 4G, WiFi (2.4G / 5G), WiFi hotspot, Gigabit network port, etc.

1.Parameters

Parameter MEETINGHUB LED DISPLAY
Pixel pitch(mm) 1.5625
Size(mm) 3000(W)*1678.5(H)*27.9
Display size 3000(W)*1687.5(H)=5.0625㎡
Resolution(P) 1920x1080(2K)
Max Power 3000W
Ave power 1800W
Working temp(℃) -10℃—40℃

135” MEETINGHUB LED DISPLAY JC-UHD-P1.5625
Image Diagonal(inch) 135
Screen ratio 16:9
Imaging principle direct view true back led
Pixel pitch(mm) 1.5625
Physical density 1920x1080 pixels(2K)
Brightness(nits) 400-1000,adjustable(white balance,CT: 6500K)
H viewing angle( °) 160
V viewing angle( °) 160
Contrast ratio 5000:1

Item JC-UHD-P1.5625
Module Led encapsulation “3-in-1” SMD
Module resolution(W×H) 192x108 pixels
Module size (W×H) 300×168.75mm
Module weight(kg) 0.35
Max power consumption(W) 30

Item JC-UHD-P1.5625
Cabinet Module quantity(W×H) 2×2
Panel Resolution(W×H) 320x180 pixels
Panel Size (W×H) 600×337.5mm
Cabinet area(m2) 0.2025
Weight(kg/cabinet；kg/panel) 5.56; 145
Plainness ≤0.2mm

Item JC-UHD-P1.5625
Opt Brightness calibration for single dot Yes
Color calibration for single dot Yes
Color temperature(K) 3200—9300adjustable
Color uniformity <3%
Brightness Uniformity ≥97%
Anty-Y correction curve within±0.003Cx,Cy

Item JC-UHD-P1.5625
Electro Ave(W/cabinet；W/m2) 55；270
Power supply(50-60Hz) AC85~264V
Process Driving mode Constant
repetition frequency(Hz) 50&60
Refresh rate(Hz) 3840
Using Lifespan typical value(hrs) 50,000-80,0000
Working temperature(℃) -10 — 40
Storing temperature(℃) -20 — 60
Working humidity(RH) 10 – 80%, frost-free
Storing humidity(RH) 10- 85%, frost-free

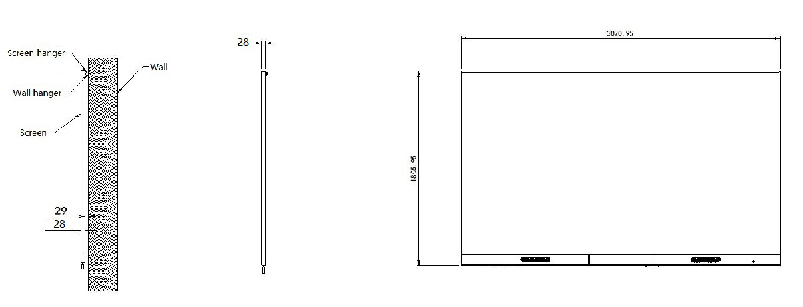

2. Structure & installation

floor standing

Wall mounting

135inch Conference Interactive Flat Panel Display

135inch Conference Interactive Flat Panel Display135inch Conference Interactive Flat Panel Display
